QT Peripheral Pump

Performance Range

Max. Flow: 12m3/h
Max. Head: 16.5m

Application Limits

1. Maximum liquid temperature +40℃
2. Maximum liquid density 1.2×103kg/m3
3. Power frequency is 50Hz. Nominal voltage is 220VAC for single-phase with the range from -10% to 10%.
4. Immersion depth from 0.5m-5m
5. Solids handling 7mm


Application Fields

With small size and light weight, the QT(50Hz) series pump is especially suitable for the rural wells water pumping, farmland irrigation and drainage, garden watering, water spraying and family households, as well as other applications such as industrial , construction, aquaculture, fish ponds, etc.


1. Household oil-filled type sewage pumps.
2. Much durable for the cast iron pump body and impeller.
3. 2 inch thread outlet which is suitable for all kinds of installations.
4. Sound flowing ability.

Optional Available On Request

Other voltage or frequency is 60Hz

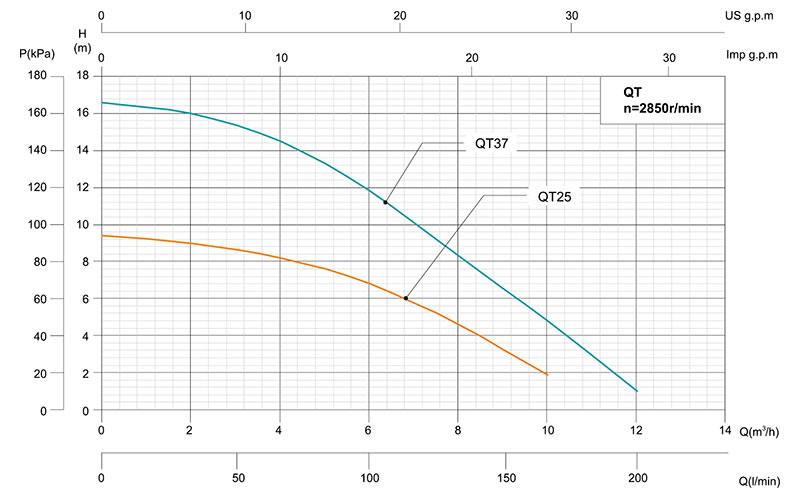

Performance Curves
